Single Phase Aluminum Electrolytic Capacitor Cable Length From 200mm To 250mm

HUANGSHAN SAFETY ELECTRIC TECHNOLOGY CO., LTD.
Contact Now

Single Phase Aluminum Electrolytic Capacitor Cable Length From 200mm To 250mm

  • 1
  • 2

Brand Name : BSD

Model Number : CD60B-2

Certification : UL , CE , ISO9001-2008

Place of Origin : CHINA

MOQ : 1000 PCS

Price : USD 0.45

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000PCS/MONTH

Delivery Time : 20days after received payment

Packaging Details : standard export carton

Contact Now

CD60B STARTING CAPACITOR



Introduction:



CD60B-2 Type aluminum electrolytic capacitor sealed in alumium case , cable for connections , different colors of PVC sleeve

insulated for buyer selecting .

The production can be designed and made according to our customer's special desires .

This type of capacigtor is same as CD60B-2 type only the conncetion way is different .

The cable length from 200mm to 250mm.



Main Technical Data:



Environment Temperature  -40~+65℃
Rated Voltage  110~330VAC
Capacitance Range  21~1536uf
Capacitance Tolerance  0~+20%
Dissipation Factor  tg<0.1<0.15 (20℃,100Hz)
Load Life  According to the difference working voltage and capacitance , alternation 0.5-4 minute turn on 1 time for second , 12500~50000times . According to the ANSI/EIA-463-A standard.
Surge Voltage between lugs  Applying 1.25 times rated voltage for 2 seconds
Surge Voltage between lugs and case   2000VAC 10 seconds non-broken down

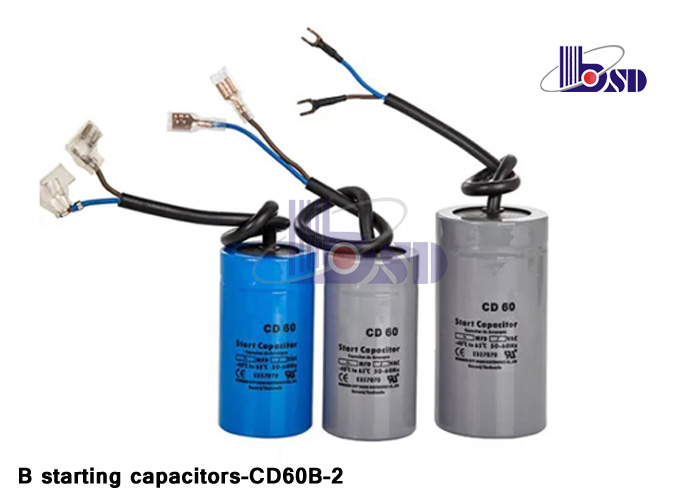

Product show:

Single Phase Aluminum Electrolytic Capacitor Cable Length From 200mm To 250mm



Company tour:

Single Phase Aluminum Electrolytic Capacitor Cable Length From 200mm To 250mmSingle Phase Aluminum Electrolytic Capacitor Cable Length From 200mm To 250mmSingle Phase Aluminum Electrolytic Capacitor Cable Length From 200mm To 250mm
